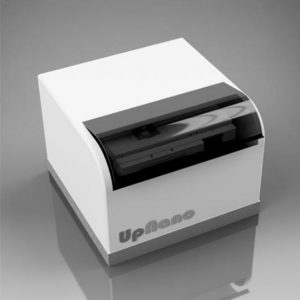

UpNano, NanoOne

High resolution printing system

Stratasys Connex 3 – Objet 500

System to print parts made of polymers with different mechanical, optical and thermal properties.

build size (x/y/z):490 x 390 x 200 mm
layer thickness: 0.016mm
accuracy: up to 200 microns
build resolution: X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi

Lithoz CeraFab 7500



System to print parts made of high-performance ceramics.
build size (x/y/z):76 x 43 x 170 mm
layer thickness: 10-100 microns
lateral resolution: 40 microns
building speed: up to 100 slices per hour

Multilayer Roll to Plate nanoimprint tool (PROFACTOR/Stensborg A/S)

Large area replication of micro- and nanostructures using UV-based nanoimprint lithography

  • 30x60cm²  maximum substrate size
  • Printable area up to 25x50cm² (depending on requirements)
  • Up to 23mm substrate thickness
  • Slot die coating, inkjet printing, droplet dispensing
  • Microscope cameras for accurate alignment

High resolution 3D scanning System

SmartSCAN_HE-C8-8MP, Heaxagon GmbH

The SmartSCAN 3D scanner system offers a high level of detail and works extremely stable and reliable even with temperature fluctuations. Due to a fast data acquisition, even complex surfaces of fragile or deformable parts are detected in high precision within a few seconds. An automatic turntable allows precise scanning of complex structures.

The scanner can also detect the texture on measured bodies. Due to interchangeable lenses, a large measuring range and a high resolution can be achieved.

Measurement optics available at our center:

Materialise Mimics Innovation Suite and Mimics InPrint

Software to turn scans into 3D models, design patient-specific device, carry out advanced anaylses.
